MRS-4 Micro Raman Spectrometer 200nm - 800nm Raman Spectroscopy Machine

Name: MRS4 Micro Raman Spectrometer 200nm 800nm Raman Spectroscopy Machine
Brand: SHUOBODA
Price: 1 USD

Brand Name : SHUOBODA

Model Number : MRS-4

Certification : ISO/CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500 sets/month

Delivery Time : 5~8 working days

Packaging Details : Plywood packing

Focal length : 300mm

Grating : 1200 pieces/mm

Wavelength range : 200~800nm

slit : 0~2mm continuously adjustable

Wavelength accuracy : ≤0.2nm

Repeatability : ≤0.2nm

excitation wavelength : 532nm

Output Power : 100mW

Contact Now

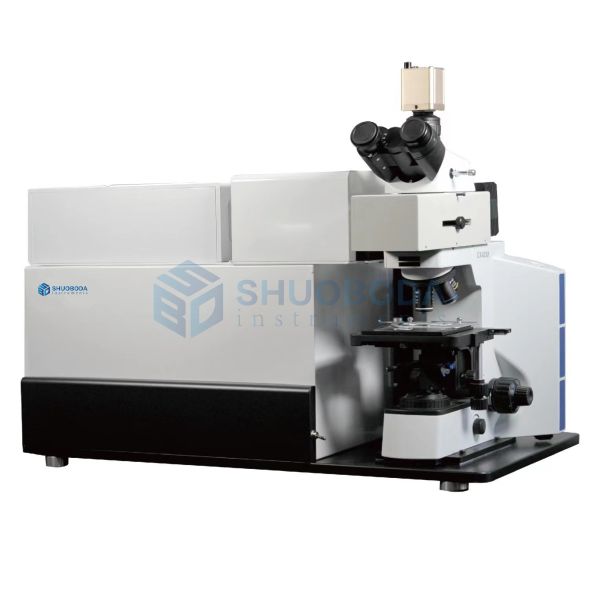

MRS-4 Micro-Raman spectrometer

Product description

MRS-4S is a general-purpose microscopic confocal Raman spectrometer. Based on the modular design concept and advanced optical system, it achieves high performance and high-cost performance. It is suitable for university teaching, basic scientific research, enterprise testing and R&D., environmental protection and other fields

Features

Visual operation control, intuitive and simple

Sample size up to 2μm

Low wavenumber detection down to 20cm-1 is possible

Different detection methods of wavelength/wave number can be selected

Detectable polarization properties of Raman spectra

Model	MRS-4
Monochromator
Focal length	300mm
Grating	1200 pieces/mm
Wavelength range	200~800nm
slit	0~2mm continuously adjustable
Wavelength accuracy	≤0.2nm
Repeatability	≤0.2nm
Laser
excitation wavelength	532nm
Output Power	100mW
Microscope optical system
Infinity chromatic aberration correction system, minimum measurement diameter 2μm
eyepiece	High eye point and large field of view plan eyepiece PL10x/22mm
eyepiece	Micrometer available
objective lens	Infinity plan semi-apochromatic fluorescence objective (10x, 50x, 100x)
converter	Internally positioned five-hole converter
Focusing mechanism	Low hand position coarse and fine adjustment coaxial
	Coarse adjustment stroke 30mm
	Fine adjustment accuracy 0.002mm
	Tightness adjustment device and upper limit device
	Stage bracket set height adjustable
Stage	150mm x 162mm double-layer composite mechanical platform
	Movement range 76mm x 50mm
	Accuracy 0.1mm
	X-axis single linear rail transmission
	Upper platform ceramic spray paint
Lighting system	Adaptive 100V~240V wide voltage
	Reflector light room
	Single high-power 5W high-brightness LED light
	Kohler Lighting
	Reservation center
	Light intensity continuously adjustable
Camera	Ultra HD 16 million pixels
