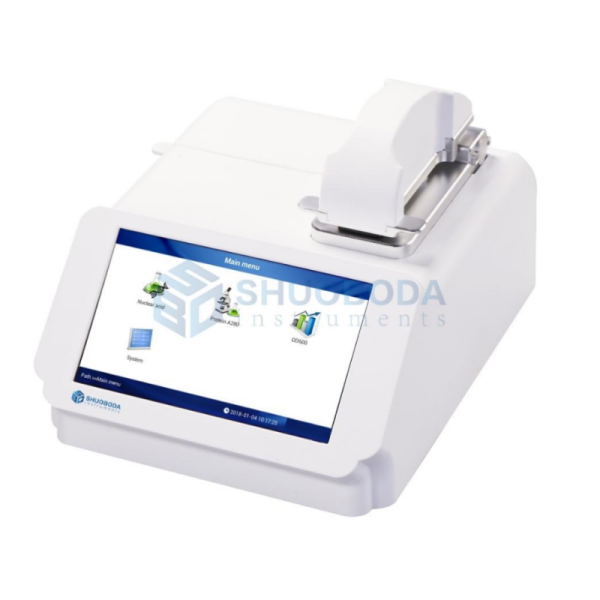

MSP-400A ultra-micro nucleic acid analyzer, 260 nm, 800 nm, 10-2500 ng/μl
Product introduction:
MSP-400A ultra-micro nucleic acid analyzer is an instrument used to detect the concentration and purity of DNA and RNA. The sample size required for each measurement is only 1 to 2 μl. User can directly add the sample point to the template without colorizing cup or capillary accessories. After the measurement, you can choose to wipe the sample directly or use a pipettor to recover the sample. All steps are simple and fast.
Features
MSP-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelengths: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins
Android system operation, 7-inch touch screen no computer, APP software, simple interface, easy to use
LED light source long-life components
To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280
Measure purified protein concentration at 280 nm
The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory
Technical Specifications
| Model | MSP-400A |
| Wavelength range | 260 nm, 800 nm |
| Minimum sample size | 1-2.0 μl |
| Path length | 0.5 mm |
| Light source | LED |
| Detector type | UV-sillion photocell |
| Spectral resolution | ≤8 nm |
| Absorbance precision | 0.005Abs |
| Absorbance accuracy | 2%(7.332Abs at 260 nm) |
| Absorbance range | 0.2 - 50 A |
| Detects nucleic acid up to | 10-2500 ng/μl(dsDNA) |
| Measurement time | <6 S |
| Data output | USB |
| Sample pedestal material | Quartz optical fiber and high-hardness aluminum |
| Operating voltage | DC 24 V 2 A |
| Operating power | 25 W |
| Standby power | 5 W |
| Dimension (W×D×H) mm | 208×280×186 |
| Weight | 2.0kg |
| Cuvette mode (OD600) Light source | LED (Light Emitting Diode) |
| Software compatibility | Android system |
| Light source | LED |
| Wavelength range | 600±8 nm |
| Absorbance range | 0-4 A |
