The maximum amount of water evaporated

2000ml/h

Intake air temperature

30~250℃(±0.5℃)

Outlet air temperature

30~100℃(±0.5℃)

Electric heater

3.0 KW/AC220V; Material: 2520 special stainless steel

Inlet and outlet air temperature monitoring

Taiwan PT-100 platinum resistor, intelligent PID control

Spray system

American brand atomizer, 0.7mm diameter two- fluid atomizer

(Optional caliber: 0.4mm; 1.5mm)

* Cloth bag filter device

main material is stainless steel, built-in stainless steel folding high efficiency filter element

Drying time

0.8s~1.5s

Feed rate

50~2000ml/h

Atomizing atomizer automatic plugging device

Automatic needle frequency is adjustable, 0 ~ 60 seconds/time (manual needle function is also available)

Control system

Germany Siemens PLC automation control system; Imported 7 inch color touch screen

Oxygen measuring system detection range

0-100%

Software version

Independent intellectual property rights OS 1.0, visual touch operation;

Display and control the inlet air temperature, outlet air temperature, frequency conversion and needle frequency;

Data recording and export, curve analysis function, alarm and overload protection

Oxygen detector module

Ensure that the oxygen concentration is below 3% before starting feeding (the value can be set)

Pressure measuring system range

0-100Kpa

Explosion-proof module

Automatic pressure relief above 3Kpa (value can be set)

Bursting disk

Automatic type

Air blower

Delta variable frequency governor, imported fan, 0-70m³/h arbitrary adjustment (variable frequency fan)

Drying tower size

φ204*640mm(H)

Filter recovery size

Φ133*550mm(H)

Condensing unit size

φ159*830mm(H)X2

Quick removal design

Thermometers, air lines, power supplies, all use quick-plug design

option

Magnetic stirrer, weighing system, etc

Power source

220V；50Hz

Overall size

L*W*H=1000*1000*1200mm

Gross weight

140KG

atomizer

Spray

Peristaltic pump

Durable

Air blower

Dagang

Fan converter

Delta

PLC control system

Siemens

PT100 temperature electrode

Twidec

PT100 Aviation plug

Twidec

Electrical components:

air switch,

Relays, switch buttons, etc

Schneider

HMI

Weinview

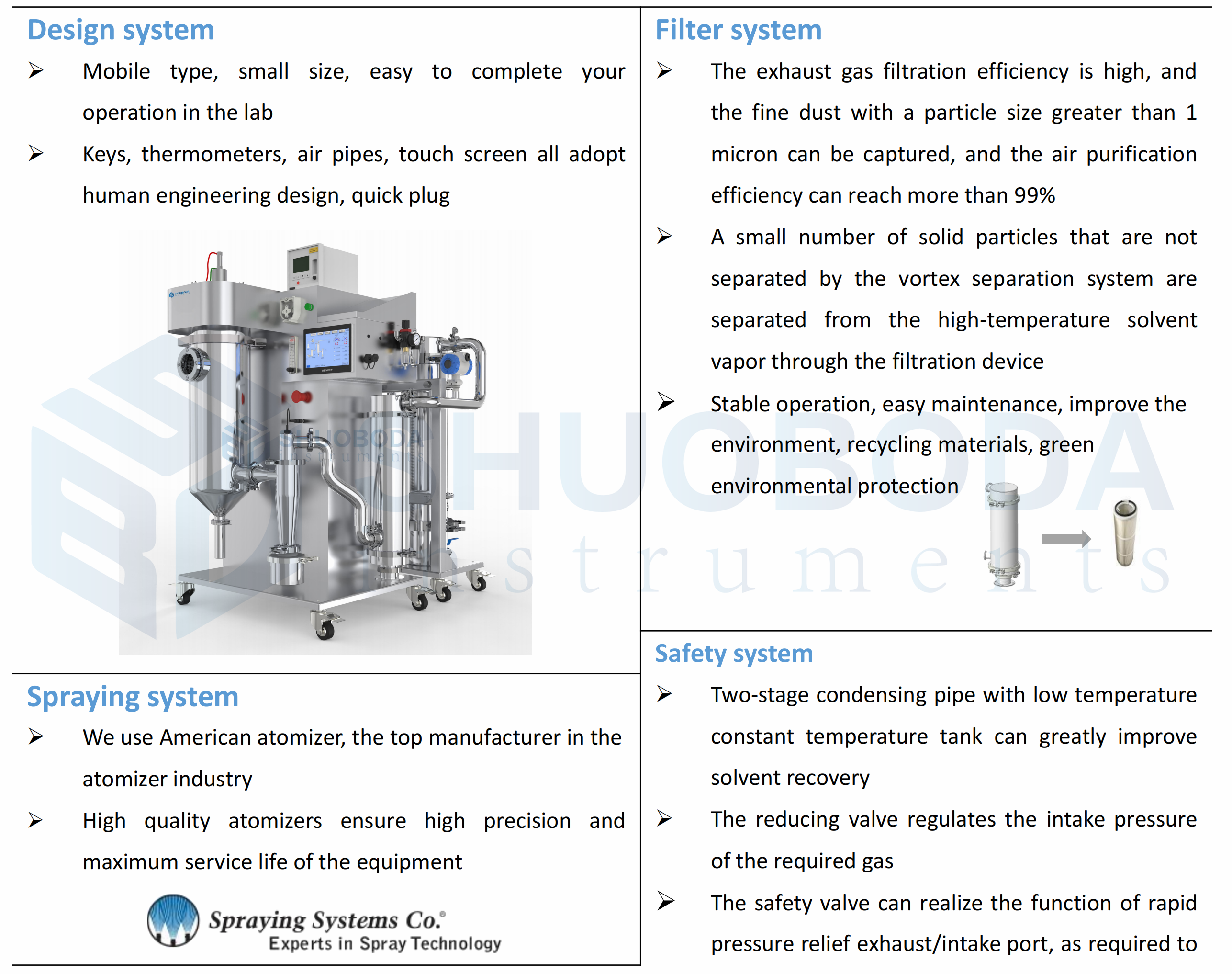

Ø atomizer cleaner (through needle) is provided, when the atomizer is blocked, it will be automatically cleared, and the frequency of the through needle can be automatically adjusted

Ø Closed nitrogen circulation, saving the amount of gas used, experimental safety, prevent sample oxidation

Ø High-precision oxygen measurement system, according to the level of oxygen concentration automatically control the feed start and stop, the safety of the experiment

Ø Sensitive pressure measuring system and automatic pressure relief, space pressure safety

Ø The spray head is concentric and atomized to ensure that there is no eccentricity causing spray to one side of the bottle wall

Ø Filter system In order to maintain the purity of the sample, the air inlet filter is equipped

Ø Multi-stage porous solvent condensation system to improve solvent recovery

Ø The upgraded atomization system effectively solves the problem of adhesion of some viscous materials in the cyclone separator

Ø Frequency conversion fan, control the amount of air in and out, reduce the loss of fine materials

Ø The drying tower vortex separator can be split and cleaned to solve the problem of difficult cleaning

Ø 7 inch LCD touch screen, temperature curve memory function, real-time monitoring, the whole machine is made of stainless steel

Ø Just press the stop button when shutting down, and the machine will stop running immediately except for the fan to ensure that the heating part of the equipment will not be burned out due to misoperation

Ø Self-produced nitrogen generator can be selected to reduce the frequency of use of nitrogen cylinders

Ø After drying, the particle size of the finished dry powder is more uniform, and more than 95% of the dry powder is in the same particle size range

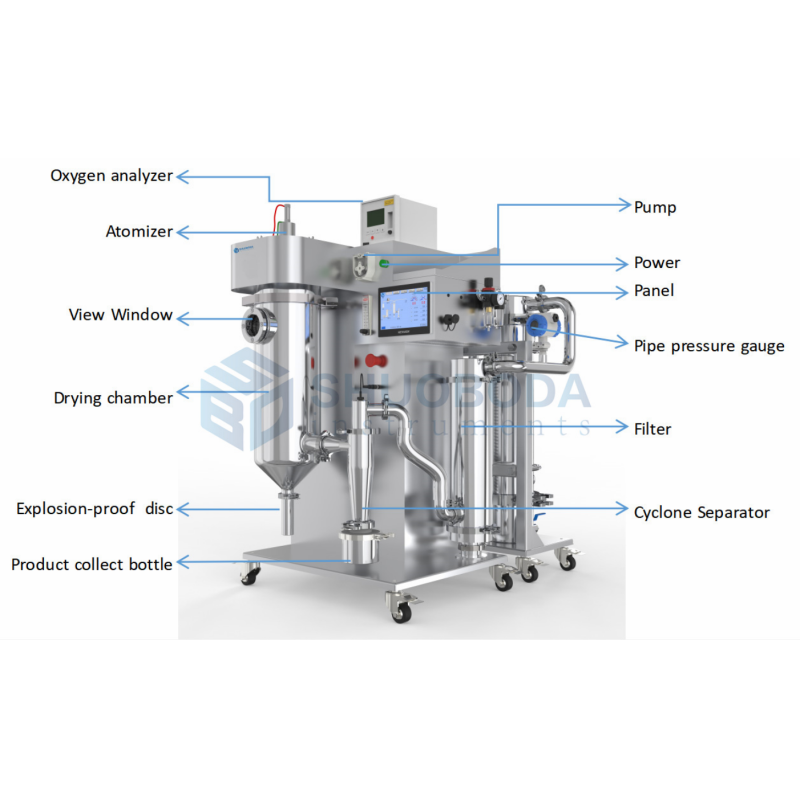

Mini host

ü

SPRAY atomizer (0.7mm caliber)

ü

Stainless steel drying chamber (with window)

ü

Stainless steel cyclone separator

ü

Cloth bag filter device

ü

Product receiving container

ü

Two condensing units

ü

Cyclone demister

ü

Drying tower body seal ring

ü

Small collection bottle drying chamber seal ring

ü

Oxygen analyzer

ü

manometer

ü

Safety valve

ü

Stainless steel pipe

ü

Stainless steel hose

ü

clamp

ü

PT100 temperature sensor with quick disconnector

ü

Silicone tube

ü

Air belt quickly remove the head

ü

Air compressor

ü

Portable disassembly tool

ü

Product identification

ü

Factory inspection report

ü

Certificate of conformity

ü

User manual

ü

After-sales service manual

ü
